CMD246C4

8-22 GHz Low Phase Noise Amplifier

CMD246C4 Features

* Wide bandwidth

* Low phase noise

* Low current consumption

* Pb-free RoHs compliant 4x4 mm SMT package Functional Block Diagram Description The CMD246C4 is a wideband GaAs MMIC low phase noise amplifier housed in a leadless surface mount package that is ideally suited for militar

CMD246C4 General Description

The CMD246C4 is a wideband GaAs MMIC low phase noise amplifier housed in a leadless surface mount package that is ideally suited for military, space and communications systems. At 16 GHz the device delivers 17 dB of gain, a saturated output power of +18 dBm and a noise figure of 5 dB. Also with an i.

CMD246C4 Datasheet (262.54 KB)

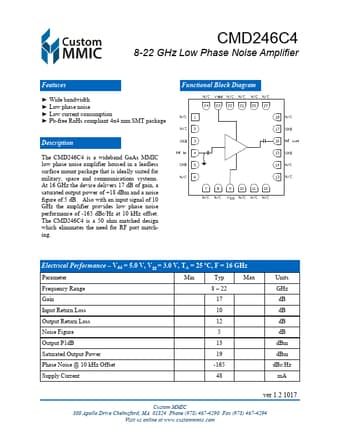

CMD246C4 Datasheet Preview — Preview of CMD246C4 PDF

Datasheet Details

Part number:

CMD246C4

Manufacturer:

Custom MMIC

File Size:

262.54 KB

Description:

8-22 ghz low phase noise amplifier.
