CMD257C4

6-10 GHz High IP3 I/Q Mixer

CMD257C4 Features

* Low conversion loss

* High IP3

* Image rejection: 30 dB

* Wide IF bandwidth

* Pb-free RoHs compliant 4x4 mm SMT package Description The CMD257C4 is a high IP3 I/Q mixer in a leadless surface mount package that can be used as either an image reject mixer or a single sideband upc

CMD257C4 General Description

The CMD257C4 is a high IP3 I/Q mixer in a leadless surface mount package that can be used as either an image reject mixer or a single sideband upconverter. The CMD257C4 utilizes two double balanced mixer cells and a 90 degree hybrid. An external IF hybrid is needed to complete the image rejection. T.

CMD257C4 Datasheet (253.84 KB)

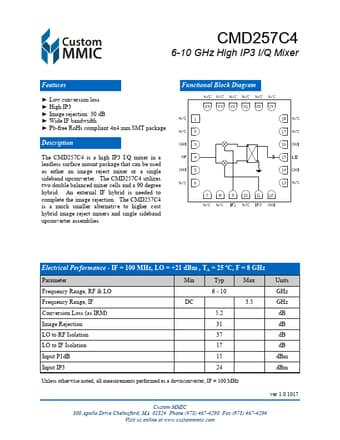

CMD257C4 Datasheet Preview — Preview of CMD257C4 PDF

Datasheet Details

Part number:

CMD257C4

Manufacturer:

Custom MMIC

File Size:

253.84 KB

Description:

6-10 ghz high ip3 i/q mixer.
