CMD258C4

7.5-13 GHz High IP3 I/Q Mixer

CMD258C4 Features

* Low conversion loss

* High IP3

* Image rejection: 29 dB

* Wide IF bandwidth

* Pb-free RoHs compliant 4x4 mm SMT package Description The CMD258C4 is a high IP3 I/Q mixer in a leadless surface mount package that can be used as either an image reject mixer or a single sideband upc

CMD258C4 General Description

The CMD258C4 is a high IP3 I/Q mixer in a leadless surface mount package that can be used as either an image reject mixer or a single sideband upconverter. The CMD258C4 utilizes two double balanced mixer cells and a 90 degree hybrid. An external IF hybrid is needed to complete the image rejection. T.

CMD258C4 Datasheet (247.36 KB)

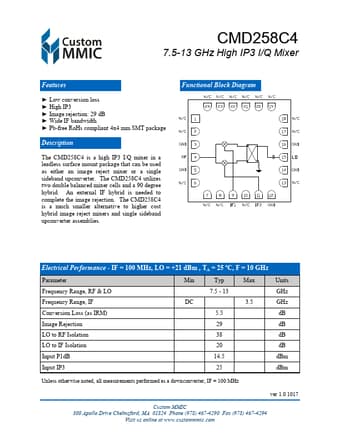

CMD258C4 Datasheet Preview — Preview of CMD258C4 PDF

Datasheet Details

Part number:

CMD258C4

Manufacturer:

Custom MMIC

File Size:

247.36 KB

Description:

7.5-13 ghz high ip3 i/q mixer.
