CMD25N20 - N-Channel 200V MOSFET

CMD25N20 Description

CMD25N20-VB CMD25N20-VB Datasheet N-Channel 200 V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) 200 RDS(on) () 0.055 at VGS = 10 V ID (A).

CMD25N20 Features

* Trench Power MOSFET
* 175 °C Junction Temperature
* PWM Optimized
* 100 % Rg Tested

CMD25N20 Applications

* Primary Side Switch G GD S S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain Current (TJ = 175 °C)b TC = 25 °C TC = 125 °C ID Pulsed Drain Current IDM Continuou

📥 Download Datasheet

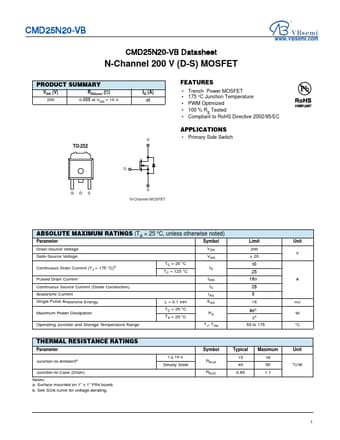

Preview of CMD25N20 PDF

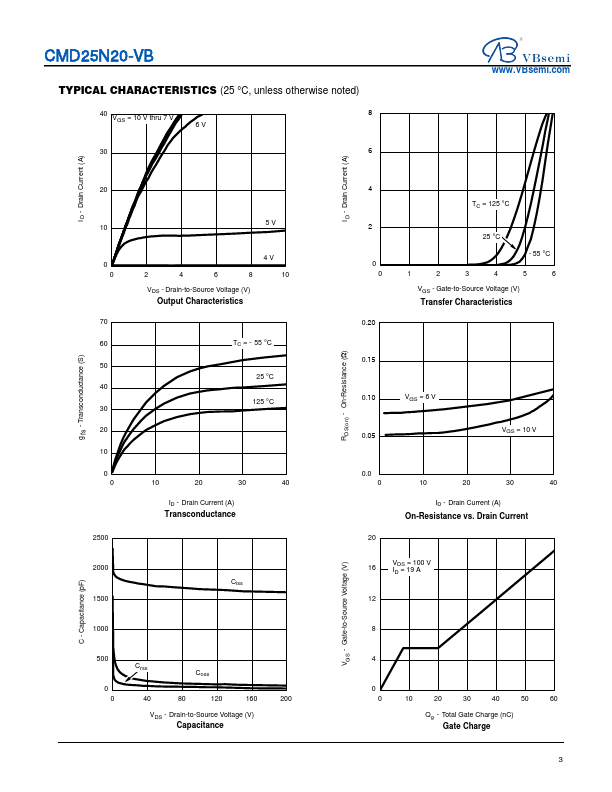

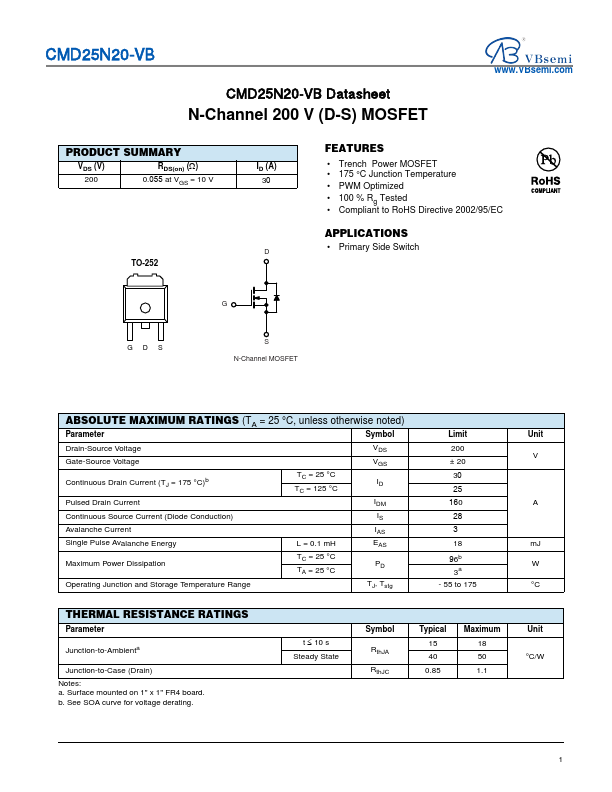

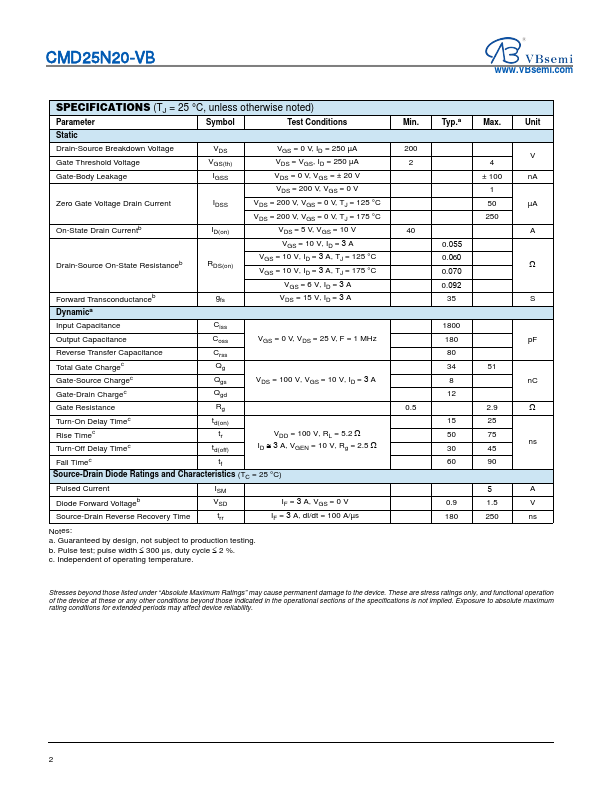

datasheet Preview Page 2 datasheet Preview Page 3
