CMD183C4 Datasheet - Custom MMIC

CMD183C4 7.5-13 GHz I/Q Mixer

The CMD183C4 is a compact I/Q mixer in a leadless surface mount package that can be used as either an image reject mixer or a single sideband upconverter. The CMD183C4 utilizes two double balanced mixer cells and a 90 degree hybrid. An external IF hybrid is needed to complete the image rejection. Th.

CMD183C4-CustomMMIC.pdf

Preview of CMD183C4 PDF

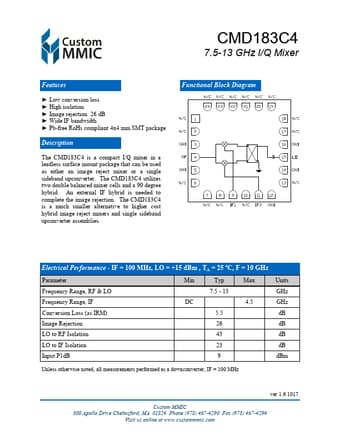

CMD183C4 Datasheet Preview Page 2 CMD183C4 Datasheet Preview Page 3

Datasheet Details

Part number:

CMD183C4

Manufacturer:

Custom MMIC

File Size:

237.81 KB

Description:

7.5-13 ghz i/q mixer.
