CMD195 - SPDT Non-reflective Switch

Product Overview

📥 Download Datasheet

Datasheet preview – CMD195

Datasheet Details

Part number CMD195
Manufacturer Qorvo
File Size 271.34 KB
Description SPDT Non-reflective Switch
Datasheet download datasheet CMD195 Datasheet
Additional preview pages of the CMD195 datasheet.

Product details

Description

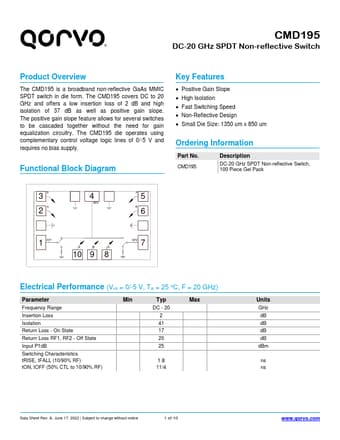

DC-20 GHz SPDT Non-reflective Switch, 100 Piece Gel Pack 3B 2A 4 5 A RFC B 6 1 RF1 A B A 10 9 8 7 RF2 Electrical Performance (Vctl = 0/-5 V, TA = 25 oC, F = 20 GHz) Parameter Min Typ Max Frequency Range DC - 20 Insertion Loss 2 Isolation 41 Return Loss - On State 17 Return Loss RF1, RF2 - Off State 20 Input P1dB 25 Switching Characteristics tRISE, tFALL (10/90% RF) 1.8 tON, tOFF (50% CTL to 10/90% RF) 11/4 Units GHz dB dB dB dB dBm ns ns Data Sheet Rev.A, June
