CMD274P4 - Low Phase Noise Amplifier

Product Overview

📥 Download Datasheet

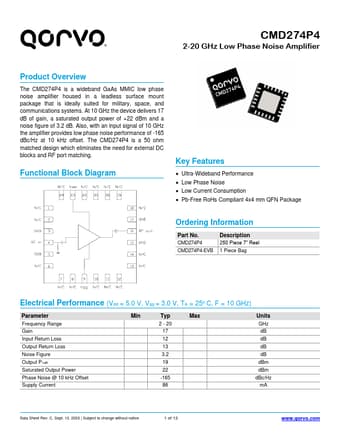

Datasheet preview – CMD274P4

Datasheet Details

Part number CMD274P4
Manufacturer Qorvo
File Size 359.33 KB
Description Low Phase Noise Amplifier
Datasheet download datasheet CMD274P4 Datasheet
Additional preview pages of the CMD274P4 datasheet.

Product details

Description

250 Piece 7” Reel 1 Piece Bag Electrical Performance (Vdd = 5.0 V, Vgg = 3.0 V, TA = 25o C, F = 10 GHz) Parameter Frequency Range Gain Input Return Loss Output Return Loss Noise Figure Output P1dB Saturated Output Power Phase Noise @ 10 kHz Offset Supply Current Min Typ Max 2 - 20 17 12 13 3.2 19 22 -165 86 Units GHz dB dB dB dB dBm dBm dBc/Hz mA Data Sheet Rev.C, Sept.13, 2023 | Subject to change without notice 1 of 12 www.qorvo.com ® Absolute Maximum Ratings Parameter R

Features
