CMD273P3

DC-12 GHz DPDT Transfer Switch

CMD273P3 General Description

The CMD273P3 is a low loss broadband positive control MMIC DPDT transfer switch housed in a leadless 3x3 mm surface mount package. The CMD273P3 covers DC to 12 GHz and offers a low insertion loss of 1.7 dB and high isolation of 42 dB at 6 GHz. The CMD273P3 operates using complementary control voltag.

CMD273P3 Datasheet (267.22 KB)

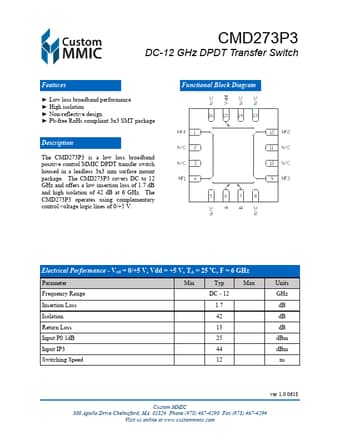

Preview of CMD273P3 PDF

Datasheet Details

Part number:

CMD273P3

Manufacturer:

Custom MMIC

File Size:

267.22 KB

Description:

Dc-12 ghz dpdt transfer switch.
