CMD270

4-8 GHz Low Noise Amplifier

CMD270 Features

* Ultra low noise figure

* High gain broadband performance

* Single supply voltage: +4.0 V @ 60 mA

* Small die size Description The CMD270 is a broadband MMIC low noise amplifier ideally suited for EW and communications systems where small size and low power consumption are needed. T

CMD270 General Description

The CMD270 is a broadband MMIC low noise amplifier ideally suited for EW and communications systems where small size and low power consumption are needed. The broadband device delivers greater than 15 dB of gain with a corresponding output 1 dB compression point of +17 dBm and a noise figure of 1.8 .

CMD270 Datasheet (231.25 KB)

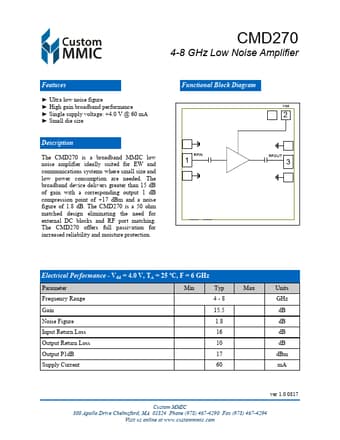

Preview of CMD270 PDF

Datasheet Details

Part number:

CMD270

Manufacturer:

Custom MMIC

File Size:

231.25 KB

Description:

4-8 ghz low noise amplifier.
