CMD276C4

GaN Low Noise Amplifier

CMD276C4 Features

* High gain

* Low noise figure

* High linearity

* High RF power survivability

* Pb-free RoHs compliant 4x4 QFN package Description The CMD276C4 is a broadband MMIC GaN low noise amplifier housed in a leadless 4x4 mm QFN package. The CMD276C4 is ideally suited for microwave radios

CMD276C4 General Description

The CMD276C4 is a broadband MMIC GaN low noise amplifier housed in a leadless 4x4 mm QFN package. The CMD276C4 is ideally suited for microwave radios and S-band applications where small size and high input power survivability are needed. The broadband device delivers greater than 14 dB of gain with .

CMD276C4 Datasheet (241.80 KB)

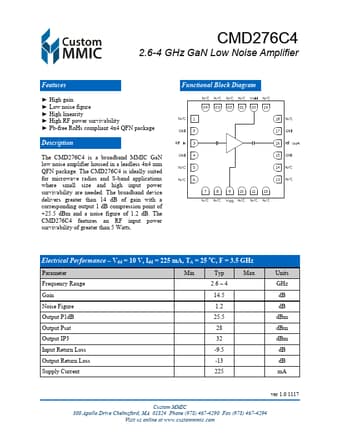

Preview of CMD276C4 PDF

Datasheet Details

Part number:

CMD276C4

Manufacturer:

Custom MMIC

File Size:

241.80 KB

Description:

Gan low noise amplifier.
