CMD270P3

4-8 GHz Low Noise Amplifier

CMD270P3 Features

* Ultra low noise figure

* High gain broadband performance

* Single supply voltage: +4.0 V @ 60 mA

* Pb-free RoHs compliant 3x3 QFN package Description The CMD270P3 is a broadband MMIC low noise amplifier housed in a leadless 3x3 mm plastic surface mount package. The CMD270P3 is idea

CMD270P3 General Description

The CMD270P3 is a broadband MMIC low noise amplifier housed in a leadless 3x3 mm plastic surface mount package. The CMD270P3 is ideally suited for EW and communications systems where small size and low power consumption are needed. The broadband device delivers greater than 16 dB of gain with a corr.

CMD270P3 Datasheet (225.22 KB)

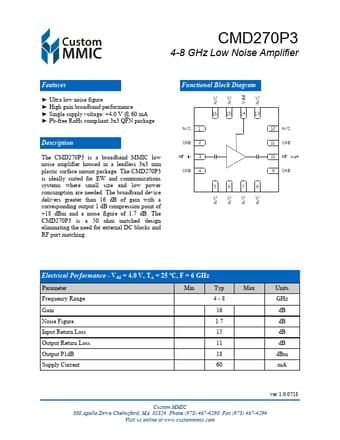

Preview of CMD270P3 PDF

Datasheet Details

Part number:

CMD270P3

Manufacturer:

Custom MMIC

File Size:

225.22 KB

Description:

4-8 ghz low noise amplifier.
