CMD274P4

2-20 GHz Low Phase Noise Amplifier

CMD274P4 Features

* Ultra wideband performance

* Low phase noise

* Low current consumption

* Pb-free RoHs compliant 4x4 mm QFN package Functional Block Diagram Description The CMD274P4 is a wideband GaAs MMIC low phase noise amplifier housed in a leadless surface mount package that is ideally suited

CMD274P4 General Description

The CMD274P4 is a wideband GaAs MMIC low phase noise amplifier housed in a leadless surface mount package that is ideally suited for military, space and communications systems. At 10 GHz the device delivers 17 dB of gain, a saturated output power of +22 dBm and a noise figure of 3.2 dB. Also with an.

CMD274P4 Datasheet (601.29 KB)

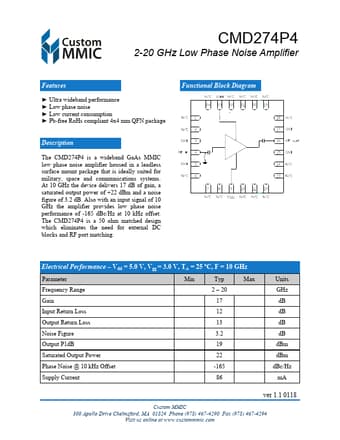

CMD274P4 Datasheet Preview — Preview of CMD274P4 PDF

Datasheet Details

Part number:

CMD274P4

Manufacturer:

Custom MMIC

File Size:

601.29 KB

Description:

2-20 ghz low phase noise amplifier.
