CMD293 - Driver Amplifier

Product Overview

📥 Download Datasheet

Datasheet preview – CMD293

Datasheet Details

Part number CMD293
Manufacturer Qorvo
File Size 347.82 KB
Description Driver Amplifier
Datasheet download datasheet CMD293 Datasheet
Additional preview pages of the CMD293 datasheet.

Product details

Description

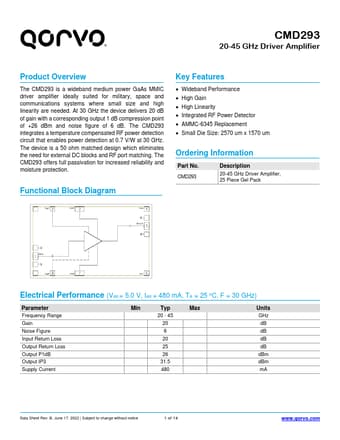

20-45 GHz Driver Amplifier, 25 Piece Gel Pack Vgg1 Vdd1 Vdet RFOUT RFIN Vgg2 Vdd2 Vref Electrical Performance (Vdd = 5.0 V, Idd = 480 mA, TA = 25 oC, F = 30 GHz) Parameter Frequency Range Gain Noise Figure Input Return Loss Output Return Loss Output P1dB Output IP3 Supply Current Min Typ Max 20 - 45 20 6 20 25 26 31.5 480 Units GHz dB dB dB dB dBm dBm mA Data Sheet Rev.B, June 17, 2022 | Subject to change without notice 1 of 14 www.qorvo.com ® Absolute Maximum Ratings
