CMD292

DC-30 GHz Distributed Driver Amplifier

CMD292 Features

* Ultra wideband performance

* High linearity

* High output power

* HMC994 replacement

* Small die size Description The CMD292 is wideband GaAs MMIC distributed driver amplifier die which operates from DC to 30 GHz. The amplifier delivers 13 dB of gain with a corresponding output

CMD292 General Description

The CMD292 is wideband GaAs MMIC distributed driver amplifier die which operates from DC to 30 GHz. The amplifier delivers 13 dB of gain with a corresponding output 1 dB compression point of +27 dBm and output IP3 of 33 dBm at 15 GHz. The CMD292 is a 50 ohm matched design which eliminates the need f.

CMD292 Datasheet (280.59 KB)

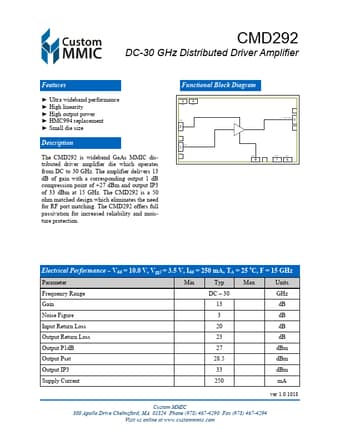

CMD292 Datasheet Preview — Preview of CMD292 PDF

Datasheet Details

Part number:

CMD292

Manufacturer:

Custom MMIC

File Size:

280.59 KB

Description:

Dc-30 ghz distributed driver amplifier.
