CMD295C4

2GHz - 20GHz Driver Amplifier

CMD295C4 Features

* Wide Bandwidth

* High Linearity

* Low Current Consumption

* Pb-Free RoHs Compliant 4x4 mm SMT Package Ordering Information Part No. CMD295C4 CMD295C4-EVB Description 2-20 GHz Driver Amplifier, 100 Piece 7” Reel Evaluation Board Electrical Performance (Vdd = 3.0

CMD295C4 General Description

2-20 GHz Driver Amplifier, 100 Piece 7” Reel Evaluation Board Electrical Performance (Vdd = 3.0 V, Vgg = 2.0V, TA = 25 oC, F = 10 GHz) Parameter Min Typ Max Frequency Range 2 - 20 Gain 27 Noise Figure 3 Input Return Loss 12 Output Return Loss 18 Output P1dB 16 Output IP3 29 Outpu.

CMD295C4 Datasheet (423.53 KB)

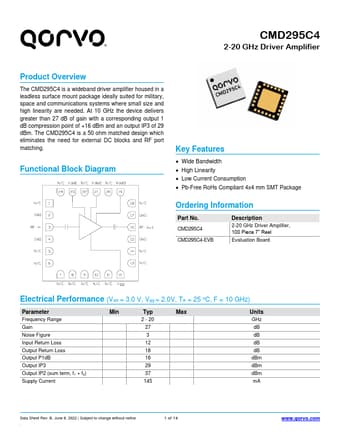

Preview of CMD295C4 PDF

Datasheet Details

Part number:

CMD295C4

Manufacturer:

qorvo

File Size:

423.53 KB

Description:

2ghz - 20ghz driver amplifier.
CMD295C4 ® 2-20 GHz Driver Amplifier Product Overview The CMD295C4 is a wideband driver amplifier housed in a leadless surface mount package ideall.
