CMD291P4 - Driver Amplifier

CMD291P4 Description

CMD291P4 ® 16-24 GHz Driver Amplifier Product Overview The CMD291P4 is a wideband GaAs MMIC driver amplifier housed in a leadless 4x4 mm surface mo.
16-24 GHz Driver Amplifier, 100 Piece 7” Reel Evaluation Board Electrical Performance (Vdd = 5 V, Idd = 250 mA, TA = 25 oC, F = 20 GHz) ) Parameter.

CMD291P4 Features

* Wideband Performance
* High Gain
* High Linearity
* HMC498LC4 Replacement

CMD291P4 Applications

* requiring high dynamic range. The CMD291P4 delivers 22 dB of gain with a corresponding output 1 dB compression point of +25.5 dBm and output IP3 of 31.5 dBm at 20 GHz. The amplifier is a 50 ohm matched design which eliminates the need for external DC blocks and RF port matching. Functional Block Dia

📥 Download Datasheet

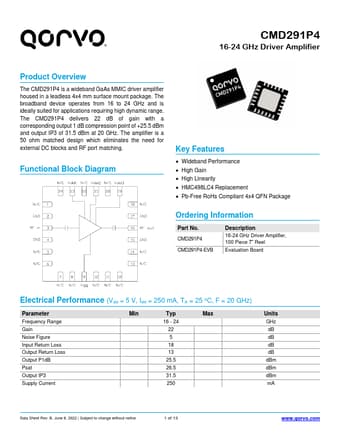

Preview of CMD291P4 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CMD291P4
Manufacturer
Qorvo
File Size
414.55 KB
Datasheet
CMD291P4-Qorvo.pdf
Description
Driver Amplifier
