CMD290 - 2GHz - 26GHz GaN Low Noise Amplifier

Product Overview

Qorvo

Datasheet Details

Part number	CMD290
Manufacturer	Qorvo
File Size	458.48 KB
Description	2GHz - 26GHz GaN Low Noise Amplifier
Datasheet	CMD290 Datasheet

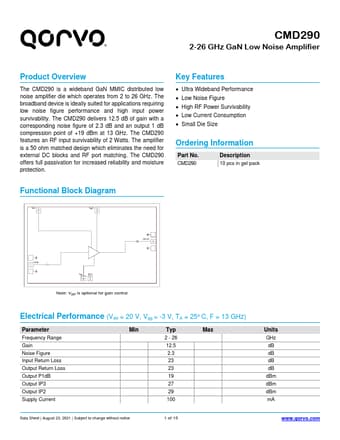

Additional preview pages of the CMD290 datasheet.

Product details

Description

10 pcs in gel pack Functional Block Diagram Vdd Vgg2 RFOUT RFIN Vgg ACG Note: Vgg2 is optional for gain control Electrical Performance (Vdd = 20 V, Vgg = -3 V, TA = 25o C, F = 13 GHz) )Parameter )Frequency Range )Gain )Noise Figure Input Return Loss )Output Return Loss Output P1dB Output IP3 Output IP2 Supply Current Min Typ Max 2 - 26 12.5 2.3 23 23 19 27 29 100 Data Sheet | August 23, 2021 | Subject to change without notice 1 of 15 Units GHz dB dB dB dB dBm dBm dBm mA

Features

an RF input survivability of 2 Watts. The amplifier is a 50 ohm matched design which eliminates the need for external DC blocks and RF port matching. The CMD290 offers full passivation for increased reliability and moisture protection. Key Features.
Ultra Wideband Performance.
Low Noise Figure.
High RF Power Survivability.
Low Current Consumption.
Small Die Size Ordering Information Part No. CMD290.
