CMD297P34 Datasheet - Qorvo

CMD297P34 Analog Phase Shifter

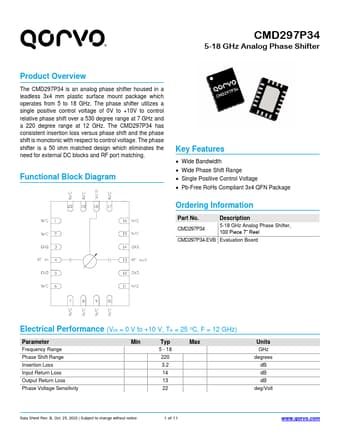

CMD297P34 5-18 GHz Analog Phase Shifter, 100 Piece 7” Reel CMD297P34-EVB Evaluation Board Electrical Performance (Vctl = 0 V to +10 V, TA = 25 oC, F = 12 GHz) Parameter Frequency Range Phase Shift Range Insertion Loss Input Return Loss Output Return Loss Phase Voltage Sensitivity Min Typ Max.
CMD297P34 ® 5-18 GHz Analog Phase Shifter Product Overview The CMD297P34 is an analog phase shifter housed in a leadless 3x4 mm plastic surface mount package which operates from 5 to 18 GHz. The phase shifter utilizes a single positive control voltage of 0V to +10V to control relative phase shift over a 530 degree range at 7 GHz and a 220 degree range at 12 GHz. The CMD297P34 has consistent insertion loss versus phase shift and the phase shift is monotonic with respect to control voltage. The.

CMD297P34-Qorvo.pdf

Preview of CMD297P34 PDF
CMD297P34 Datasheet Preview Page 2 CMD297P34 Datasheet Preview Page 3

Datasheet Details

Part number:

CMD297P34

Manufacturer:

Qorvo

File Size:

356.86 KB

Description:

Analog phase shifter.
