CMD293

20-45 GHz Driver Amplifier

CMD293 Features

* Wide bandwidth

* High gain

* High linearity

* Integrated RF power detector

* AMMC-6345 replacement

* Small die size Description The CMD293 is a wideband medium power GaAs MMIC driver amplifier ideally suited for military, space and communications systems where small size an

CMD293 General Description

The CMD293 is a wideband medium power GaAs MMIC driver amplifier ideally suited for military, space and communications systems where small size and high linearity are needed. At 30 GHz the device delivers 20 dB of gain with a corresponding output 1 dB compression point of +26 dBm and noise figure of.

CMD293 Datasheet (270.67 KB)

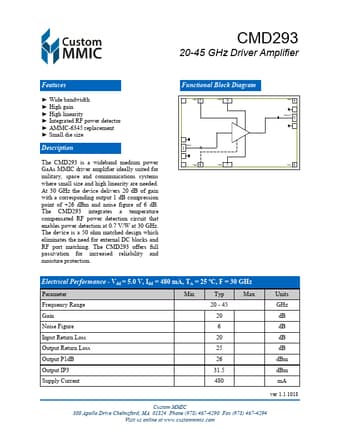

Preview of CMD293 PDF

Datasheet Details

Part number:

CMD293

Manufacturer:

Custom MMIC

File Size:

270.67 KB

Description:

20-45 ghz driver amplifier.
