CMD197

1-24 GHz Distributed Driver Amplifier

CMD197 Features

* Wide bandwidth

* High linearity

* Single positive supply voltage

* On chip bias choke Description The CMD197 is a wideband GaAs MMIC driver amplifier ideally suited for military, space and communications systems where small size and high linearity are needed. At 10 GHz the device d

CMD197 General Description

The CMD197 is a wideband GaAs MMIC driver amplifier ideally suited for military, space and communications systems where small size and high linearity are needed. At 10 GHz the device delivers greater than 16 dB of gain with a corresponding output 1 dB compression point of +22 dBm and an output IP3 o.

CMD197 Datasheet (347.93 KB)

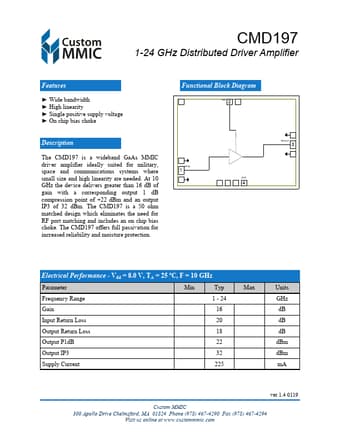

Preview of CMD197 PDF

Datasheet Details

Part number:

CMD197

Manufacturer:

Custom MMIC

File Size:

347.93 KB

Description:

1-24 ghz distributed driver amplifier.
