CMD183C4 - I/Q Mixer

7.5-13 GHz I/Q Mixer, 100 Piece 7” Reel Evaluation Board Electrical Performance (IF = 100 MHz, LO = +15 dBm, TA = 25 oC, F = 10 GHz) Parameter Min Typ Max Frequency Range, RF & LO 7.5 - 13 Frequency Range, IF DC 4.5 Conversion Loss (as IRM) 5.5 Image Rejection 26 LO to RF Isolation 4

CMD183C4 ® 7.5-13 GHz I/Q Mixer Product Overview The CMD183C4 is a compact I/Q mixer in a leadless surface mount package that can be used as either an image reject mixer or a single sideband upconverter.

The CMD183C4 utilizes two double balanced mixer cells and a 90 degree hybrid.

An external IF hybrid is needed to complete the image rejection.

The CMD183C4 is a much smaller alternative to higher cost hybrid image reject mixers and single sideband upconverter assemblies.

Functional Block Diag

CMD183C4-qorvo.pdf

Preview of CMD183C4 PDF

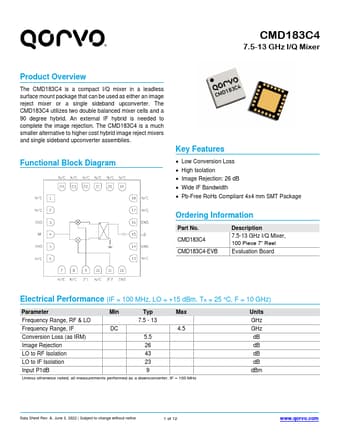

CMD183C4 Datasheet Preview Page 2 CMD183C4 Datasheet Preview Page 3

Datasheet Details

Part number:

CMD183C4

Manufacturer:

qorvo

File Size:

323.23 KB

Description:

I/q mixer.
