CMD185

4-8 GHz Low Noise Amplifier

CMD185 Features

* Ultra low noise figure

* High gain broadband performance

* Single supply voltage: +4.0 V @ 75 mA

* Small die size Description The CMD185 is a broadband MMIC low noise amplifier ideally suited for EW and communications systems where small size and low power consumption are needed. T

CMD185 General Description

The CMD185 is a broadband MMIC low noise amplifier ideally suited for EW and communications systems where small size and low power consumption are needed. The broadband device delivers greater than 15 dB of gain with a corresponding output 1 dB compression point of +15 dBm and a noise figure of 1.9 .

CMD185 Datasheet (197.81 KB)

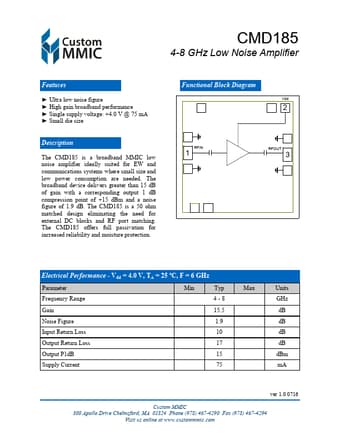

CMD185 Datasheet Preview — Preview of CMD185 PDF

Datasheet Details

Part number:

CMD185

Manufacturer:

Custom MMIC

File Size:

197.81 KB

Description:

4-8 ghz low noise amplifier.
