CMD159

10-17 GHz Low Noise Amplifier

CMD159 Features

* Ultra low noise performance

* Low current consumption

* Small die size Description The CMD159 is a highly efficient GaAs MMIC low noise amplifier ideally suited for EW and communications systems where small size and low power consumption are needed. The device is optimized for 12 GHz a

CMD159 General Description

The CMD159 is a highly efficient GaAs MMIC low noise amplifier ideally suited for EW and communications systems where small size and low power consumption are needed. The device is optimized for 12 GHz and delivers greater than 25 dB of gain with a corresponding output 1 dB compression point of +2 d.

CMD159 Datasheet (200.48 KB)

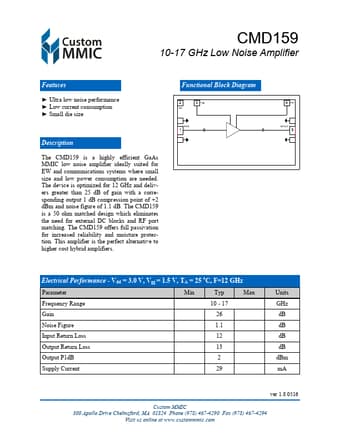

CMD159 Datasheet Preview — Preview of CMD159 PDF

Datasheet Details

Part number:

CMD159

Manufacturer:

Custom MMIC

File Size:

200.48 KB

Description:

10-17 ghz low noise amplifier.
