CMS-S035-060 SCHOTTKY BARRIER DIODE

CMS-S035-060 Description

CMS-S035-060 SCHOTTKY BARRIER DIODE .

CMS-S035-060 Features

* :
* Extremely low forward volts
* Guard ring protection
* Low reverse leakage current A B Electrical Characteristics Chip size(A): 0.889
* 0.889 mm2 Bond Pad size(B) : 0.762
* 0.762 mm2 Thickness : 300µm ± 20µm Metalization : Anode Ti/Ni/Ag Metalization : Cathode Ti/Ni/Ag

📥 Download Datasheet

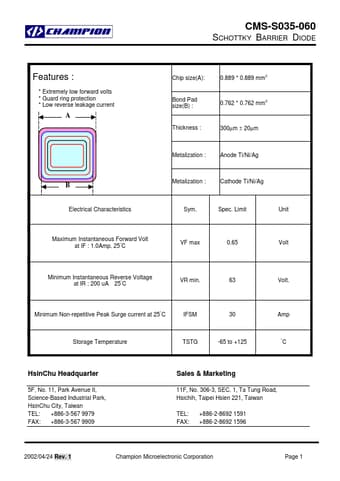

Preview of CMS-S035-060 PDF

Datasheet Details

Part number
CMS-S035-060
Manufacturer
Champion
File Size
17.08 KB
Datasheet
CMS-S035-060-Champion.pdf
Description
SCHOTTKY BARRIER DIODE
