CMS-S035-020 - SCHOTTKY BARRIER DIODE

Product Overview

Champion Microelectronic

📥 Download Datasheet

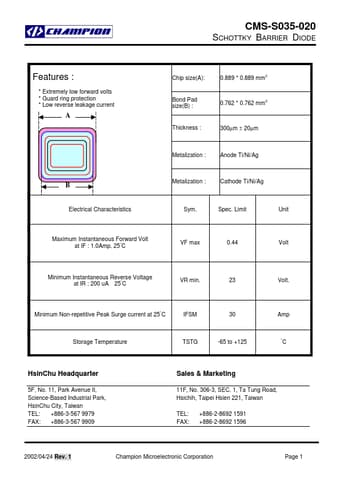

CMS-S035-020 SCHOTTKY BARRIER DIODE by Champion Microelectronic - Datasheet Preview — Datasheet preview – CMS-S035-020

Datasheet Details

Part number	CMS-S035-020
Manufacturer	Champion Microelectronic
File Size	46.72 KB
Description	SCHOTTKY BARRIER DIODE
Datasheet	CMS-S035-020 Datasheet
Additional preview pages of the CMS-S035-020 datasheet.

Product details

Features

:.
Extremely low forward volts.
Guard ring protection.
Low reverse leakage current Chip size(A): 0.889.
0.889 mm 2 Bond Pad size(B) : 0.762.
0.762 mm 2 A Thickness : 300µm ± 20µm Metalization : Anode Ti/Ni/Ag B Metalization : Cathode Ti/Ni/Ag Electrical Characteristics Sym. Spec. Limit Unit Maximum Instantaneous Forward Volt ° at IF : 1.0Amp. 25 C VF max 0.44 Volt Minimum Instantaneous Reverse Voltage ° at IR : 200 uA 25 C VR min. 23 Volt. Minimu.
