CMS-S040-080 - SCHOTTKY BARRIER DIODE

Product Overview

Champion

Part number	CMS-S040-080
Manufacturer	Champion
File Size	17.07 KB
Description	SCHOTTKY BARRIER DIODE
Datasheet	CMS-S040-080 Datasheet

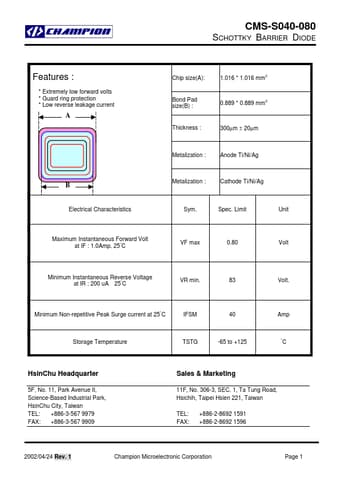

Additional preview pages of the CMS-S040-080 datasheet.

:.
Extremely low forward volts.
Guard ring protection.
Low reverse leakage current A B Electrical Characteristics Chip size(A): 1.016.
1.016 mm2 Bond Pad size(B) : 0.889.
0.889 mm2 Thickness : 300µm ± 20µm Metalization : Anode Ti/Ni/Ag Metalization : Cathode Ti/Ni/Ag Sym. Spec. Limit Unit Maximum Instantaneous Forward Volt at IF : 1.0Amp. 25°C VF max 0.80 Volt Minimum Instantaneous Reverse Voltage at IR : 200 uA 25°C VR min. 83 Minimum Non-repetitive P.
