K1610T 5V Temperature Compensated Crystal Oscillators

-55°C to +125°C; Air-to-Air; 100 cycles; 10 min. dwell 1500 g’s 20-2000 Hz; 0.06 inch; 15g’s; 3 planes 40°C; 90%-95% R.H.; 56 days 100°C to 0°C; Water-to-Water; 15 cycles 2 KV to 4 KV Threshold Solder dip; Meniscograph Criteria Mass spectro. 2 x 10-8 atmos. CC/sec He MIL-STD-202, Mtd 210A, Cond. C .

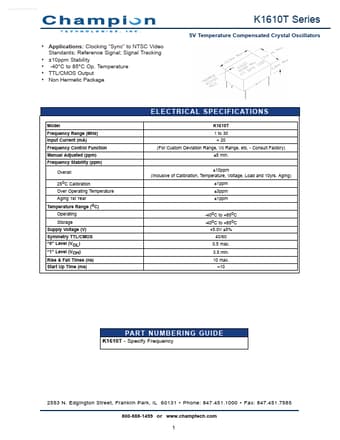

www.DataSheet4U.com K1610T Series 5V Temperature Compensated Crystal Oscillators Applications: Clocking “Sync” to NTSC Video Standards; Reference Signal; Signal Tracking ±10ppm Stability -40°C to 85°C Op. Temperature TTL/CMOS Output Non Hermetic Package E L E C T R I C A L S P E C I F I C AT I O N S Model Frequency Range (MHz) Input Current (mA) Frequency Control Function Manual Adjusted (ppm) Frequency Stability (ppm) Overall 25oC Calibration Over Operating Temperature Aging 1st Yea.
