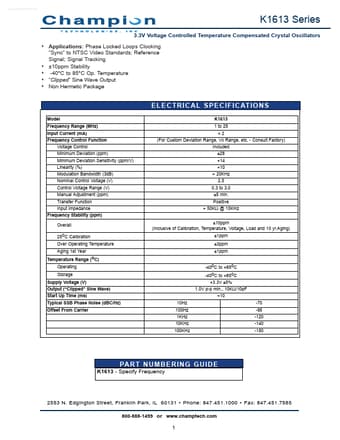

K1613 Datasheet, Oscillators, Champion

PDF File Details

Part number:

K1613

Manufacturer:

Champion

File Size:

430.53kb

Download:

📄 Datasheet

Description:

3.3v voltage controlled temperature compensated crystal oscillators. -55°C to +125°C; Air-to-Air; 100 cycles; 10 min. dwell 1500 g’s 20-2000 Hz; 0.06 inch; 15g’s; 3 planes 40°C; 90%-95% R.H.; 56 days 10

K1613 Application

• Applications Phase Locked Loops Clocking “Sync” to NTSC Video Standards; Reference Signal; Signal Tracking Œ ±10ppm Stability Œ -40°C to 85°C Op. T
