1.5KE6.8AGP - GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR

Product Overview

Chenmko Enterprise

📥 Download Datasheet

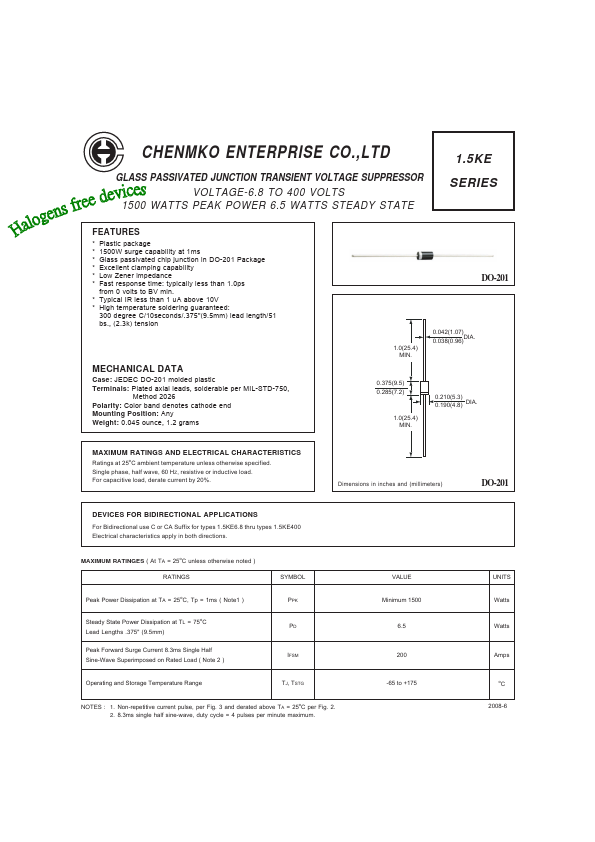

1.5KE6.8AGP GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR by Chenmko Enterprise - Datasheet Preview — Datasheet preview – 1.5KE6.8AGP

Datasheet Details

Part number	1.5KE6.8AGP
Manufacturer	Chenmko Enterprise
File Size	113.35 KB
Description	GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR
Datasheet	1.5KE6.8AGP Datasheet
Note	This datasheet PDF includes multiple part numbers: 1.5KE6.8AGP, 1.5KE6.8GP. Please refer to the document for exact specifications by model.

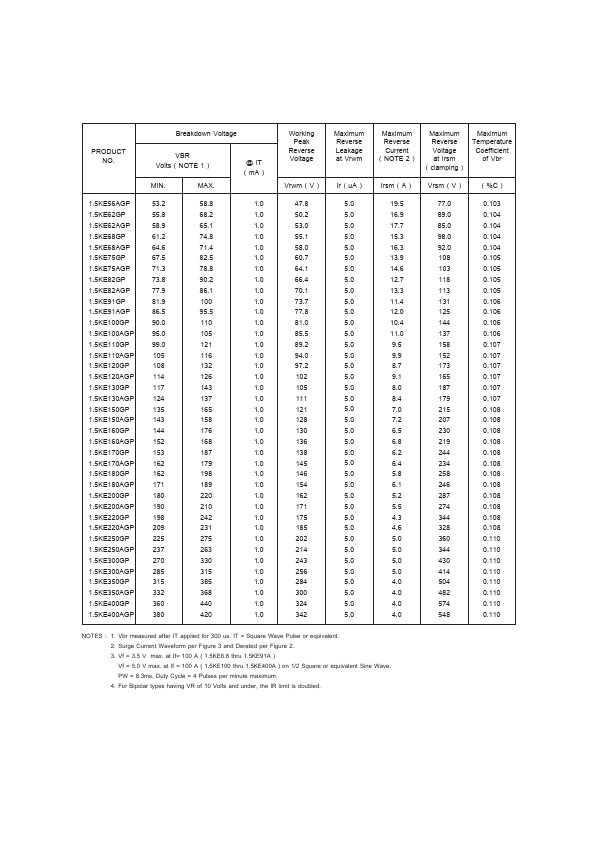

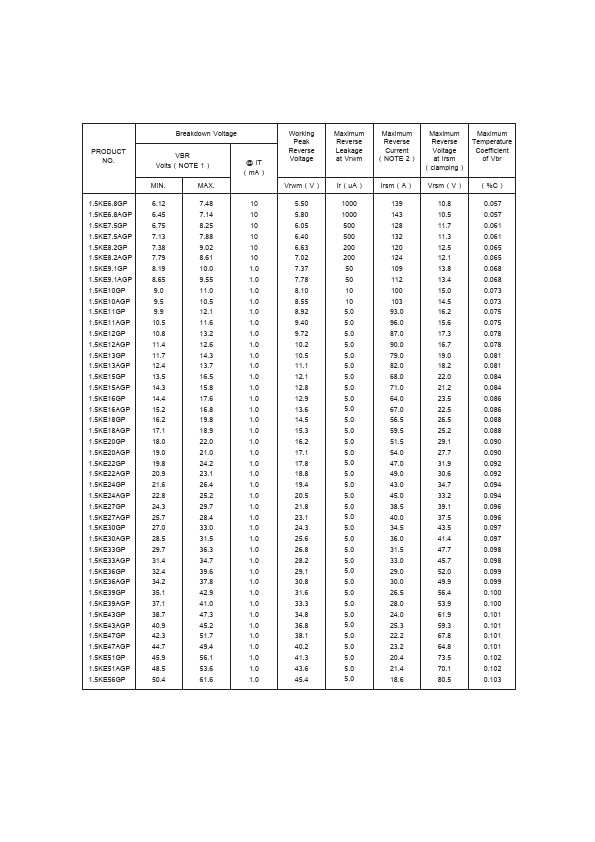

Additional preview pages of the 1.5KE6.8AGP datasheet.

Product details

Features

Plastic package.
1500W surge capability at 1ms.
Glass passivated chip junction in DO-201 Package.
Excellent clamping capability.
Low Zener lmpedance.
Fast response time: typically less than 1.0ps from 0 volts to BV min.
Typical IR less than 1 uA above 10V.
High temperature soldering guaranteed: 300 degree C/10seconds/.375"(9.5mm) lead length/51 bs. , (2.3k) tension.
