1.5KE6.8GP GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR

1.5KE6.8GP Description

CHENMKO ENTERPRISE CO.,LTD GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR VOLTAGE-6.8 TO 400 VOLTS 1500 WATTS PEAK POWER 6.5 WATTS STEADY STAT.

1.5KE6.8GP Features

* Plastic package
* 1500W surge capability at 1ms
* Glass passivated chip junction in DO-201 Package
* Excellent clamping capability
* Low Zener lmpedance
* Fast response time: typically less than 1.0ps from 0 volts to BV min.
* Typical IR less than 1 uA above 10V
* H

1.5KE6.8GP Applications

* For Bidirectional use C or CA Suffix for types 1.5KE6.8 thru types 1.5KE400 Electrical characteristics apply in both directions. MAXIMUM RATINGES ( At TA = 25oC unless otherwise noted ) RATINGS Peak Power Dissipation at TA = 25oC, Tp = 1ms ( Note1 ) Steady State Power Dissipation at TL = 75oC Lead

📥 Download Datasheet

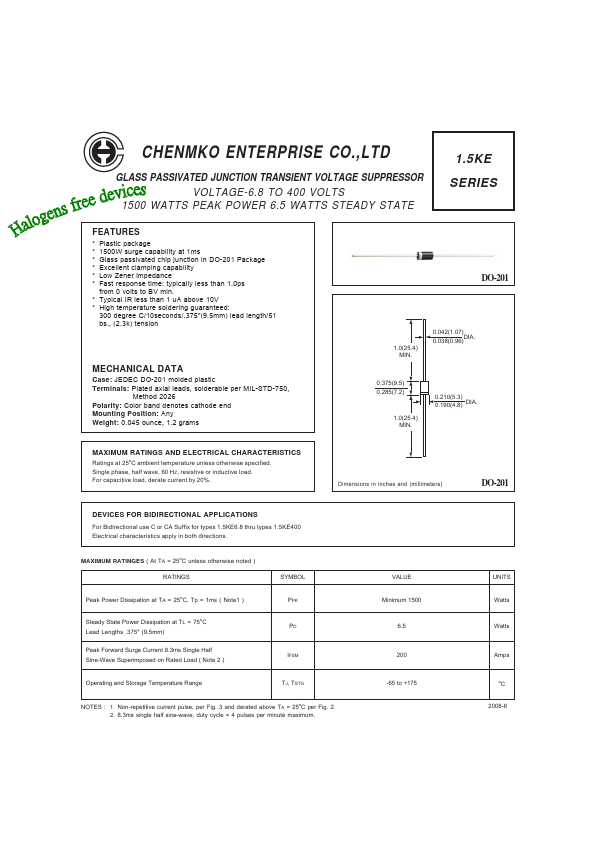

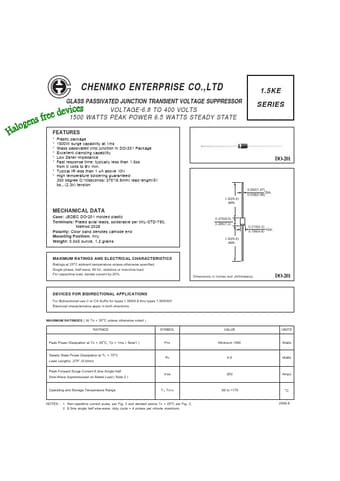

Preview of 1.5KE6.8GP PDF

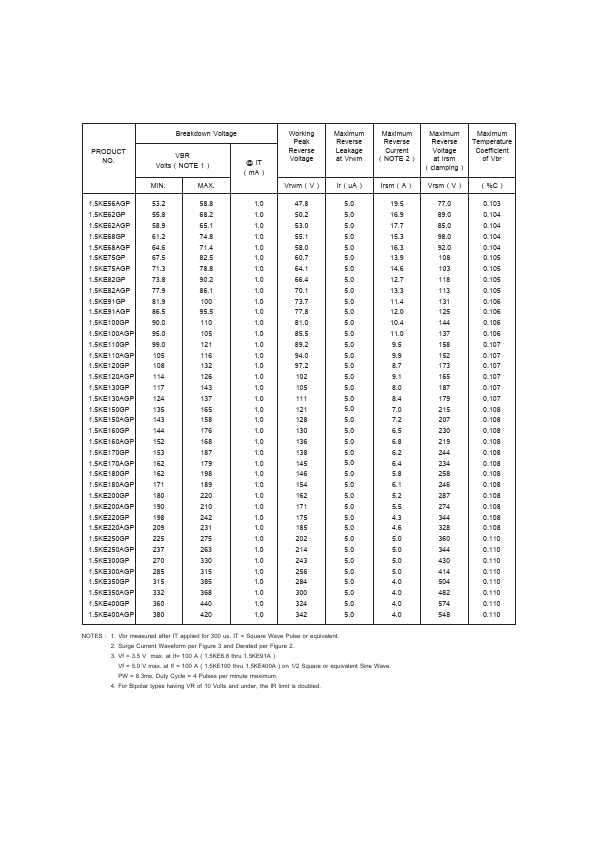

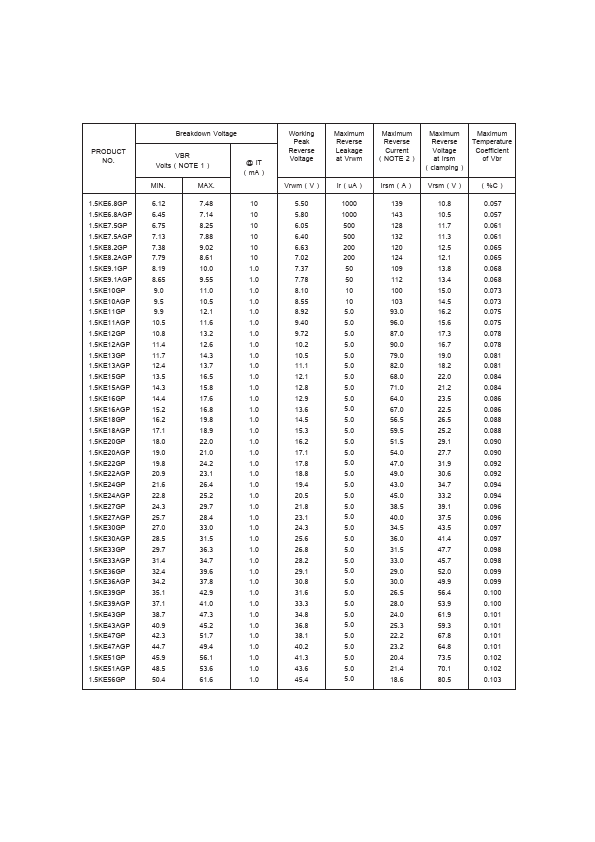

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
1.5KE6.8GP
Manufacturer
Chenmko Enterprise
File Size
113.35 KB
Datasheet
1.5KE6.8GP-ChenmkoEnterprise.pdf
Description
GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR
