S10P30PT, S10P40PT (S10P20PT - S10P40PT) SCHOTTKY BARRIER RECTIFIER

S10P30PT Description

CHENMKO ENTERPRISE CO.,LTD SCHOTTKY BARRIER RECTIFIER VOLTAGE RANGE 20 - 40 Volts .

S10P30PT Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-0
* Metal Silicon junction, majority carrier conduction
* Low power loss,high efficiency
* High current capability, low forward voltage drop
* Guardring for overvoltage protection
* For use in low v

S10P30PT Applications

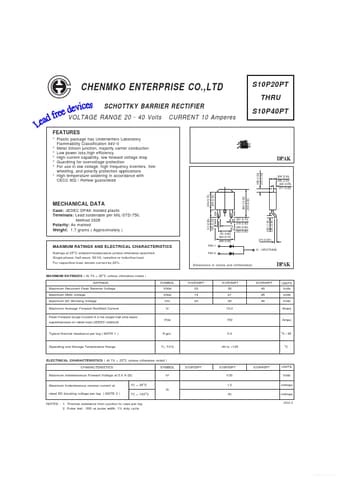

* High temperature soldering in accordance with CECC 802 / Reflow guaranteed S10P20PT THRU S10P40PT CURRENT 10 Amperes DPAK .059 (1.50) .051 (1.30) .094 (2.40) .086 (2.20) .022 (0.55) .017 (0.45) .244 (5.70) .208 (5.30) MECHANICAL DATA Case: JEDEC DPAK molded plastic Terminals: Lead soldera
