S1000NC30Y, S1000NC30D Datasheet - IXYS

S1000NC30Y Symmetrical Gate Turn-Off Thyristor

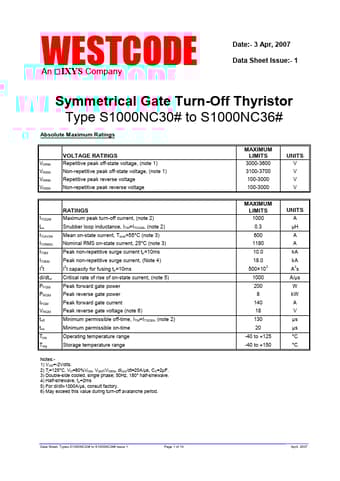

WESTCODE An IXYS Company Date:- 3 Apr, 2007 Data Sheet Issue:- 1 Symmetrical Gate Turn-Off Thyristor Type S1000NC30# to S1000NC36# Absolute Maximum Ratings VDRM VRSM VRRM VRSM VOLTAGE RATINGS Repetitive peak off-state voltage, (note 1) Non-repetitive peak off-state voltage, (note 1) Repetitive peak reverse voltage Non-repetitive peak reverse voltage MAXIMUM LIMITS 3000-3600 3100-3700 100-3000 100-3000 UNITS V V V V ITGQM Ls IT(AV)M IT(RMS) ITSM ITSM2 I2t di/dtcr PFGM PRGM IFGM VRGM toff .

S1000NC30D-IXYS.pdf

This datasheet PDF includes multiple part numbers: S1000NC30Y, S1000NC30D. Please refer to the document for exact specifications by model.
S1000NC30Y Datasheet Preview Page 2 S1000NC30Y Datasheet Preview Page 3

Datasheet Details

Part number:

S1000NC30Y, S1000NC30D

Manufacturer:

IXYS

File Size:

312.11 KB

Description:

Symmetrical gate turn-off thyristor.

Note:

This datasheet PDF includes multiple part numbers: S1000NC30Y, S1000NC30D.
Please refer to the document for exact specifications by model.
