S10040140P1

CATV Push Pull Hybrid 1000MHz 14dB

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Qorvo S10040140P1 GAAS PUSH PULL, 40-1000MHZ DigiKey 0 0
$0

S10040140P1 Datasheet (313.54 KB)

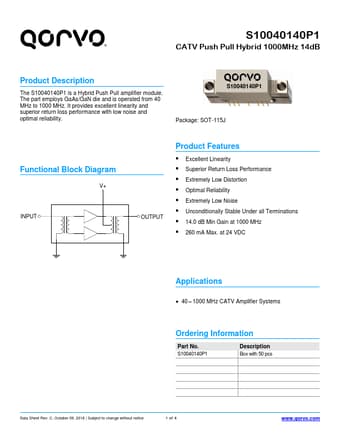

Preview of S10040140P1 PDF Datasheet

Datasheet Details

Part number:

S10040140P1

Manufacturer:

qorvo

File Size:

313.54 KB

Description:

Catv push pull hybrid 1000mhz 14db

S10040140P1 Features

* ▪ Excellent Linearity ▪ Superior Return Loss Performance ▪ Extremely Low Distortion ▪ Optimal Reliability ▪ Extremely Low Noise ▪ Unconditionally Stable Under all Terminations ▪ 14.0 dB Min Gain at 1000 MHz ▪ 260 mA Max. at 24 VDC Applications

* 40 

*  1000 MHz CATV Amplifier Systems

S10040140P1 General Description

The S10040140P1 is a Hybrid Push Pull amplifier module. The part employs GaAs/GaN die and is operated from 40 MHz to 1000 MHz. It provides excellent linearity and superior return loss performance with low noise and optimal reliability. S10040140P1 Package: SOT-115J Functional Block Diagram V+ INPU.
