S10040220P

CATV Push Pull Amplifier

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Qorvo S10040220P IC AMP GENERAL PURPOSE SOT115J DigiKey 0 0
$0

S10040220P Datasheet (319.48 KB)

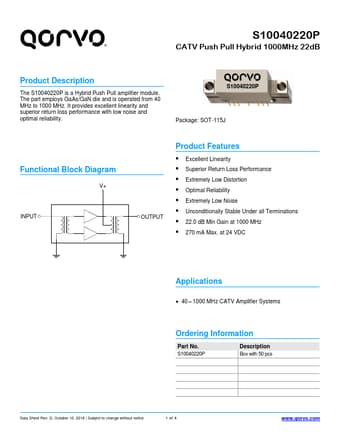

Preview of S10040220P PDF

Datasheet Details

Part number:

S10040220P

Manufacturer:

qorvo

File Size:

319.48 KB

Description:

Catv push pull amplifier.

S10040220P Features

* ▪ Excellent Linearity ▪ Superior Return Loss Performance ▪ Extremely Low Distortion ▪ Optimal Reliability ▪ Extremely Low Noise ▪ Unconditionally Stable Under all Terminations ▪ 22.0 dB Min Gain at 1000 MHz ▪ 270 mA Max. at 24 VDC Applications

* 40 

*  1000 MHz CATV Amplifier Systems

S10040220P General Description

The S10040220P is a Hybrid Push Pull amplifier module. The part employs GaAs/GaN die and is operated from 40 MHz to 1000 MHz. It provides excellent linearity and superior return loss performance with low noise and optimal reliability. S10040220P Package: SOT-115J Functional Block Diagram V+ INPUT .
