SBM28PT, SBM210PT (SBM27PT - SBM210PT) SCHOTTKY BARRIER RECTIFIER

SBM28PT Description

CHENMKO ENTERPRISE CO.,LTD SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER VOLTAGE RANGE 70 - 100 Volts CURRENT 2.0 Amperes .

SBM28PT Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-0

SBM28PT Applications

* Low profile package
* Built-in strain relief
* Metal silicon junction, majority carrier conduction
* Low power loss, high efficiency
* High current capability, low forward voltage drop
* High surge capability
* For use in low voltage high frequency inverters, free wheel

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SBM28PT, SBM210PT. Please refer to the document for exact specifications by model.

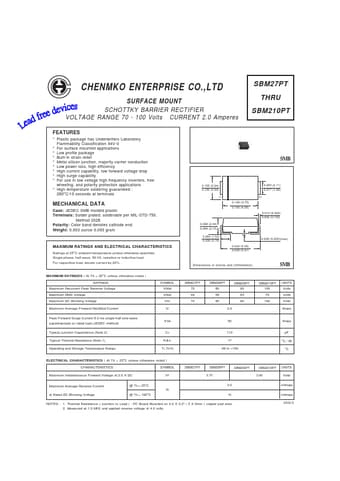

datasheet Preview Page 2

Datasheet Details

Part number
SBM28PT, SBM210PT
Manufacturer
Chenmko
File Size
136.45 KB
Datasheet
SBM210PT_Chenmko.pdf
Description
(SBM27PT - SBM210PT) SCHOTTKY BARRIER RECTIFIER
Note
This datasheet PDF includes multiple part numbers: SBM28PT, SBM210PT.
Please refer to the document for exact specifications by model.
