JT10.70MG80, JT10.70MC1 Datasheet - Chequers Electronic

JT10.70MG80 Ceramic Filter and Discriminator

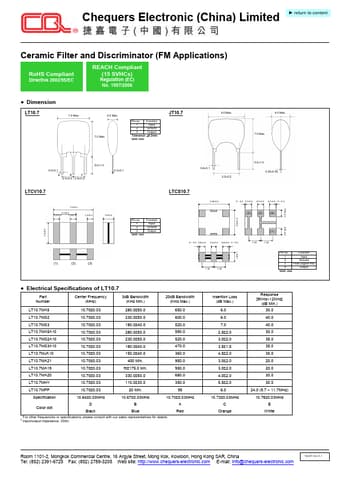

Chequers Electronic (China) Limited return to content Ceramic Filter and Discriminator (FM Applications) RoHS Compliant Directive 2002/95/EC REACH Compliant (15 SVHCs) Regulation (EC) No. 1907/2006 Dimension LT10.7 7.0 Max. 4.0 Max. 7.0 Max. Pin no. Function 1 Input 2 Ground 3 Output Tolerance: ±0.3mm Unit: mm JT10.7 9.0 Max. 4.0 Max. 7.0 Max. 0.5±0.1 3 2 1 2.5±0.2 2.5±0.2 5.0±1.0 0.3±0.1 LTCV10.7 7.0±0.3 4.1±0.4 1.2±0.3 1.2±0.3 1.2±0.3 1.5±0.2 Pin no..

JT10.70MC1-ChequersElectronic.pdf

JT10.70MG80 Datasheet Preview — This datasheet PDF includes multiple part numbers: JT10.70MG80, JT10.70MC1. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

JT10.70MG80, JT10.70MC1

Manufacturer:

Chequers Electronic

File Size:

123.26 KB

Description:

Ceramic filter and discriminator.

Note:

This datasheet PDF includes multiple part numbers: JT10.70MG80, JT10.70MC1.
Please refer to the document for exact specifications by model.
