JT102F SUBMINIATURE HIGH POWER RELAY

JT102F Description

JT102F SUBMINIATURE HIGH POWER RELAY C US File No:E319069 File No:R 50276259 File No:CQC13002100586 .

JT102F Features

* 4.5kV dielectric strength (between coil and contacts) Heavy load up to 5000VA Ideal for motor switching PCB&QC layouts available UL insulation system:Class F Environmental friendly product (RoHS compliant) Outline Dimensions:(30.5 x 16.0 x 23.5)mm CONTACT DATA Contact arrangement Contact resistanc

📥 Download Datasheet

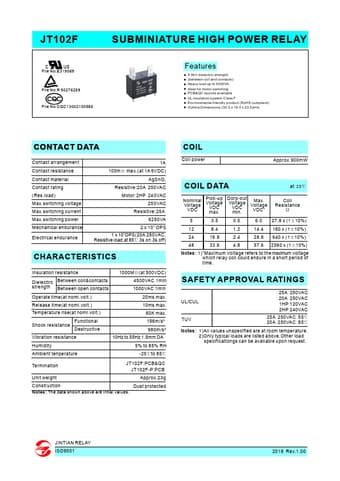

Preview of JT102F PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
JT102F
Manufacturer
Ningbo
File Size
273.83 KB
Datasheet
JT102F-Ningbo.pdf
Description
SUBMINIATURE HIGH POWER RELAY
