SDCL1005C47NJTF Datasheet - Chequers Electronic

SDCL1005C47NJTF Multilayer Chip Ceramic Inductor

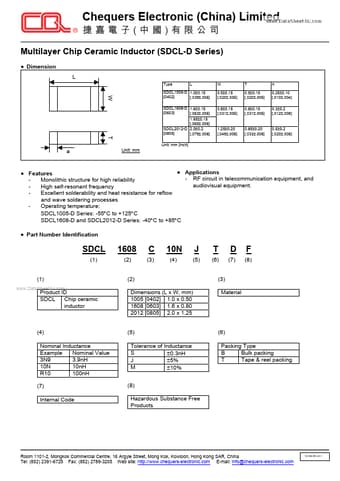

Chequers Electronic (China) Limited Multilayer Chip Ceramic Inductor (SDCL-D Series) Dimension L Type L W 0.5±0.15 [.020±.006] 0.8±0.15 [.031±.006] T 0.5±0.15 [.020±.006] 0.8±0.15 [.031±.006] A 0.25±0.10 [.010±.004] 0.3±0.2 [.012±.008] SDCL1005-D 1.0±0.15 [0402] [.039±.006] SDCL1608-D 1.6±0.15 [0603] [.063±.006] 1.65±0.15 [.065±.006] SDCL2012-D 2.0±0.2 [0805] [.079±.008] Unit: mm [inch] W T Unit: mm 1.25±0.20 [.049±.008] 0.85±0.20 [.033±.008] 0.5±0.2 [.020±.008] a Applications .

SDCL1005C47NJTF Features

* - RF circuit in telecommunication equipment, and Monolithic structure for high reliability audiovisual equipment. High self-resonant frequency Excellent solderability and heat resistance for reflow and wave soldering processes Operating temperature: SDCL1005-D Series: -55°C to +125°C SDCL1608-D and

SDCL1005C47NJTF_ChequersElectronic.pdf
