SDCL1608, SDCL0603 Datasheet - ETC

SDCL1608, SDCL0603, Chip Ceramic Inductor

*SDCL Chip Ceramic Inductor * SDCL Series Operating Temp.: SDCL0603&1005 series: -55℃~ +125℃ SDCL1608&2012 series: -40℃~ +85℃ .

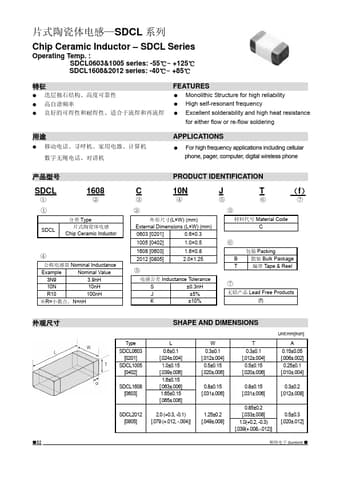

datasheet Preview Page 1 from Datasheet4u.com

SDCL0603-ETC.pdf

SDCL1608 Datasheet Preview — This datasheet PDF includes multiple part numbers: SDCL1608, SDCL0603. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SDCL1608, SDCL0603

Manufacturer:

ETC

File Size:

517.33 KB

Description:

Chip Ceramic Inductor

Note:

This datasheet PDF includes multiple part numbers: SDCL1608, SDCL0603.
Please refer to the document for exact specifications by model.

Features

* Monolithic Structure for high reliability
* High self-resonant frequency
* Excellent solderability and high heat resistance for either flow or re-flow soldering

Applications

* For high frequency applications including cellular phone, pager, computer, digital wireless phone SDCL ① ① SDCL 1608 ② Type Chip Ceramic Inductor ④ Nominal Inductance Example Nominal Value 3N9 3.9nH 10N 10nH R10 100nH ※R=，N=nH PRODUCT IDENTIFICATION C 10N ③④ ② (L×W) (mm) Ext
