ZTBF1.00MJ-TF - Ceramic Resonator

This page provides the datasheet information for the ZTBF1.00MJ-TF, a member of the ZTBF455E-TF Ceramic Resonator family.

📥 Download Datasheet

Datasheet preview – ZTBF1.00MJ-TF

Datasheet Details

Part number ZTBF1.00MJ-TF
Manufacturer Chequers Electronic
File Size 75.47 KB
Description Ceramic Resonator
Datasheet download datasheet ZTBF1.00MJ-TF Datasheet
Additional preview pages of the ZTBF1.00MJ-TF datasheet.

📁 Similar Datasheet

  • ZTBF - Electronics Ceramic Resonator (ECM Electronics Limited)
  • ZTBF420P - CERAMIC RESONATOR (ECS)
  • ZTB - ZTB Series KHz-Band Ceramic Resonator (Vanlong Technology)
  • ZTB-A - Low Frequecy (KHz) Ceramic Resonators (Fortiming)
  • ZTB-B - Low Frequecy (KHz) Ceramic Resonators (Fortiming)
  • ZTB-C - Low Frequecy (KHz) Ceramic Resonators (Fortiming)
  • ZTB-D - Low Frequecy (KHz) Ceramic Resonators (Fortiming)
  • ZTB-E - Low Frequecy (KHz) Ceramic Resonators (Fortiming)
  • ZTB-F - Low Frequecy (KHz) Ceramic Resonators (Fortiming)
  • ZTB-G - Low Frequecy (KHz) Ceramic Resonators (Fortiming)
Other Datasheets by Chequers Electronic

Full PDF Text Transcription

Click to expand full text

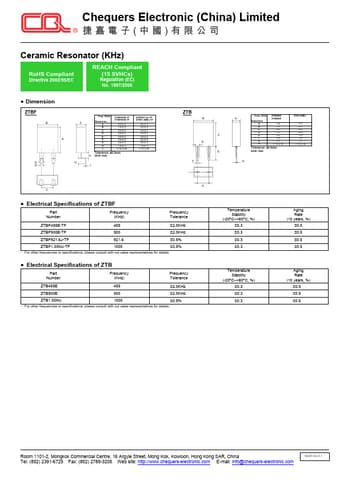

Chequers Electronic (China) Limited Ceramic Resonator (KHz) RoHS Compliant Directive 2002/95/EC REACH Compliant (15 SVHCs) Regulation (EC) No. 1907/2006 ● Dimension ZTBF B A E D F H Freq. (KHz) ZTBF455E-TF Dimension ZTBF500E-TF A 9.0±0.5 B 7.0±0.5 C 5.0±0.3 D 0.6±0.2 E 0.9±0.2 F 3.5±0.5 G 0.9±0.3 H 1.5±0.3 J 0.15±0.05 Tolerance: ±0.3mm G Unit: mm J ZTBF921.6J-TF ZTBF1.00MJ-TF 6.0±0.5 5.0±0.5 2.5±0.3 0.6±0.2 0.8±0.2 2.2±0.5 0.6±0.3 1.0±0.3 0.12±0.05 ZTB B C D E F Freq. (KHz) ZTB455E A ZTB500E Dimension A 3.5 B 7.0 C 9.0 D 1.0 E 5.0 F 0.6 G 5.0 H 0.15±0.05 Tolerance: ±0.3mm Unit: mm H ZTB1.00MJ 2.2 5.0 6.0 0.8 3.5 0.6 2.5 0.12±0.
