CS3351

Alternator Voltage Regulator Darlington Driver

Cherry Semiconductor Corporation

CS3351 Features

* s Drives NPN Darlington s Short Circuit Protection s 80V Load Dump s Temperature Compensated Regulation Voltage s Shorted Field Protection Duty Cycle, Self Clearing Absolute Maximum Ratings Storage Temperature Range -55°C to +165°C Junction Temperature Range -40°C to +150°C Continuous Supply27V IC

CS3351 General Description

The CS3341/3351/386/387 integral alternator regulator integrated circuit provides the voltage regulation for automotive, 3-phase alternators. It drives an external power Darlington for control of the alternator field current. In the event of a charge fault, a lamp output pin is provided to drive an .

CS3351 Datasheet (157.26 KB)

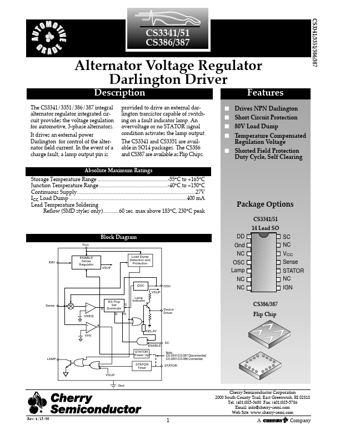

CS3351 Datasheet Preview — Preview of CS3351 PDF

Datasheet Details

Part number:

CS3351

Manufacturer:

Cherry Semiconductor Corporation

File Size:

157.26 KB

Description:

Alternator voltage regulator darlington driver.
