CS3302

HIGH-Z PROGRAMMABLE GAIN DIFFERENTIAL AMPLIFIER

CS3302 Features

* Description Signal bandwidth: DC to 2 kHz Selectable gain: x1, x2, x4, x8, x16, x32, x64 Differential inputs, differential outputs

* Multiplexed inputs: INA, INB, 800Ω termination

* Rough / fine charge outputs for CS5371/72

* Max signal amplitude: 5 Vp-p differential

CS3302 General Description

Signal bandwidth: DC to 2 kHz Selectable gain: x1, x2, x4, x8, x16, x32, x64 Differential inputs, differential outputs

* Multiplexed inputs: INA, INB, 800Ω termination

* Rough / fine charge outputs for CS5371/72

* Max signal amplitude: 5 Vp-p differential

* Ultra-low.

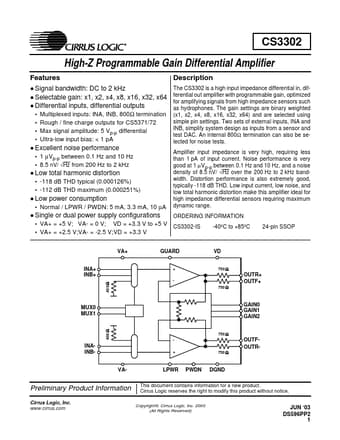

CS3302 Datasheet (140.76 KB)

Preview of CS3302 PDF

Datasheet Details

Part number:

CS3302

Manufacturer:

Cirrus Logic

File Size:

140.76 KB

Description:

High-z programmable gain differential amplifier.
