CS334 - CotoMOS

CS334 Description

® CT334/CS334 CotoMOS CT334/CS334 The CT334 and CS334 .

CS334 Features

* u Contact Form: 2a u Load Voltage: 200V Maximum u Operation LED Current: 3.0mA Maximum u Load Current: 180mA Maximum u On-Resistance: 8Ω Maximum u Low Off-State Leakage Current: 1.0μA Maximum u I/O Breakdown Voltage: 1500Vrms Minimum u Suffix -H for I/O Breakdown Voltage: 5000Vrms Minimum DIMENSION

📥 Download Datasheet

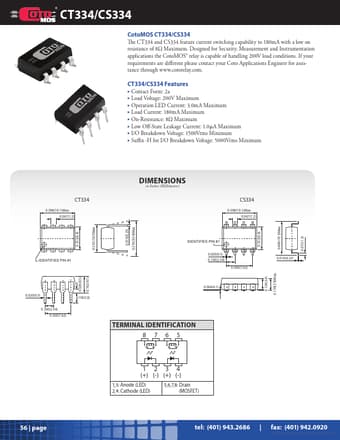

Preview of CS334 PDF
datasheet Preview Page 2

Datasheet Details

Part number
CS334
Manufacturer
Coto
File Size
439.88 KB
Datasheet
CS334_Coto.pdf
Description
CotoMOS
