CS5156

CPU 5-Bit Nonsynchronous Buck Controller

CS5156 Features

* on board, 5-bit DAC, short circuit protection, 1.0% output tolerance, VCC monitor, and programmable soft start capability. The CS5156 is backwards compatible with the 4-bit CS5151, allowing the mother board designer the capability of using either the CS5151 or the CS5156 with no change in layout. T

CS5156 General Description

The CS5156 is a 5-bit nonsynchronous N-Channel buck controller. It is designed to provide unprecedented transient response for today’s demanding high-density, high-speed logic. The regulator operates using a proprietary control method, which allows a 100ns response time to load transients. The CS515.

CS5156 Datasheet (308.46 KB)

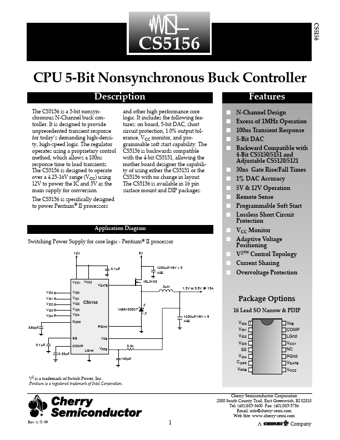

Preview of CS5156 PDF

Datasheet Details

Part number:

CS5156

Manufacturer:

Cherry Semiconductor Corporation

File Size:

308.46 KB

Description:

Cpu 5-bit nonsynchronous buck controller.
