CS5101A

16-Bit A/D Converters

Cirrus Logic

CS5101A Features

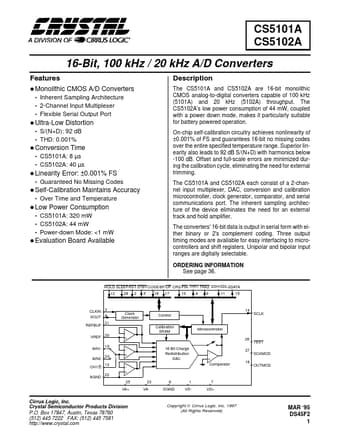

* l Monolithic CMOS A/D Converters - Inherent Sampling Architecture - 2-Channel Input Multiplexer - Flexible Serial Output Port l Ultra-Low Distortion - S/(N+D): 92 dB - THD: 0.001% l Conversion Time - CS5101A: 8 µs - CS5102A: 40 µs l Linearity Error: ±0.001% FS - Guaranteed No Missing Codes l Self-Ca

CS5101A General Description

The CS5101A and CS5102A are 16-bit monolithic CMOS analog-to-digital converters capable of 100 kHz (5101A) and 20 kHz (5102A) throughput. The CS5102A’s low power consumption of 44 mW, coupled with a power down mode, makes it particularly suitable for battery powered operation. On-chip self-calibrati.

CS5101A Datasheet (433.43 KB)

CS5101A Datasheet Preview — Preview of CS5101A PDF

Datasheet Details

Part number:

CS5101A

Manufacturer:

Cirrus Logic

File Size:

433.43 KB

Description:

16-bit a/d converters.
