CS51024 - Enhanced Current Mode PWM Controller

Cherry Semiconductor Corporation

Datasheet Details

Part number	CS51024
Manufacturer	Cherry Semiconductor Corporation
File Size	170.41 KB
Description	Enhanced Current Mode PWM Controller
Datasheet	CS51024_CherrySemiconductorCorporation.pdf

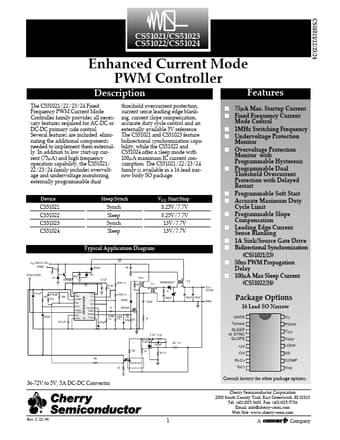

The CS51021/22/23/24 Fixed Frequency PWM Current Mode Controller family provides all necessary

required for AC-DC or DC-DC primary side control. Several features are included eliminating the additional components needed to implement them externally. In addition to low start-up current (75µA) and high frequency operation capability, the CS51021/ 22/23/24 family includes overvoltage and undervoltage monitoring, externally programmable dual Device Features s 75µA Max. Startup Current s Fixed Frequency Current Mode Control s 1MHz Switching Frequency s Undervoltage Protection Monitor s Overvo.
