CS51031

Fast PFET Buck Controller

CS51031 Features

* s 1A Totem Pole Output Driver s High Speed Oscillator (700kHz max) s No Stability Compensation Required s Lossless Short Circuit Protection s VCC Monitor s 2% Precision Reference s Programmable Soft Start Typical Application Diagram 5V - 12V CIN 47mF 20W MP1 IRF7416 Package Options 8 Lead SO Narr

CS51031 General Description

The CS51031 is a switching controller for use in DC-DC converters. It can be used in the buck topology with a minimum number of external components. The CS51031 consists of a VCC monitor for controlling the state of the device, 1.0A power driver for controlling the gate of a discrete P-channel trans.

CS51031 Datasheet (153.82 KB)

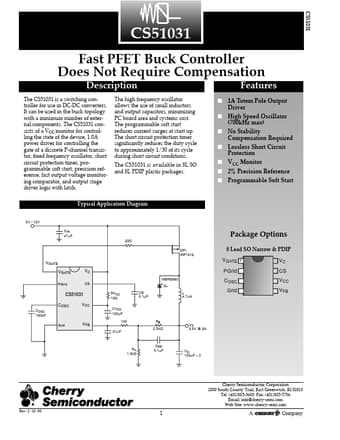

Preview of CS51031 PDF

Datasheet Details

Part number:

CS51031

Manufacturer:

Cherry Semiconductor Corporation

File Size:

153.82 KB

Description:

Fast pfet buck controller.
