CS8120

5V/ 300mA Linear Regulator with and ENABLE RESET

CS8120 Features

* s 5V ± 4% Output Voltage 300mA s Low Dropout Voltage (1V @ 150mA) s Low Quiescent Current (2.5mA @ IOUT = 150mA) s µP Compatible Control Functions RESET ENABLE RESET signal when the IC is powering up or whenever the output voltage moves out of regulation. The RESET signal is valid down to VOUT = 1V

CS8120 General Description

The CS8120 is a 5V, 300mA precision linear regulator with two microprocessor compatible control functions and protection circuitry included on chip. The composite NPN-PNP output pass transistor assures a lower dropout voltage (1V @ 200mA) without requiring excessive supply current (2.5mA). The CS812.

CS8120 Datasheet (198.56 KB)

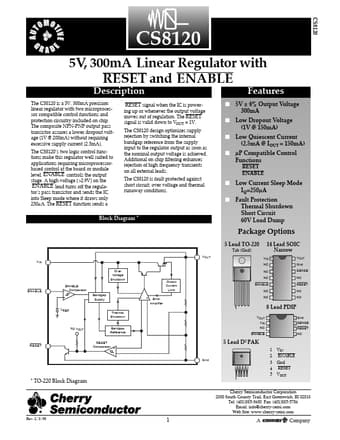

Preview of CS8120 PDF

Datasheet Details

Part number:

CS8120

Manufacturer:

Cherry Semiconductor Corporation

File Size:

198.56 KB

Description:

5v/ 300ma linear regulator with and enable reset.
