CS8122 Datasheet - Cherry Semiconductor Corporation

2% 5V 750mA Low Dropout Linear Regulator

CS8122 Features

* a tighter tolerance on its output voltage (2% vs 4%). The CS8122 is packaged in a 5 lead TOÐ220 with copper tab. The copper tab can be connected to a heat sink if necessary. Features s 5V +/- 2% Regulated Output s Low Dropout Voltage (0.6V @ 0.5A) s 750mA Output Current Capability s Externally Prog

CS8122 General Description

The CS8122 is a precision 5V linear regulator capable of sourcing in excess of 750mA. The RESET Õs delay time is externally programmed using a discrete RC network. During power up, or when the output goes out of regulation, the RESET lead remains in the low state for the duration of the delay. This .

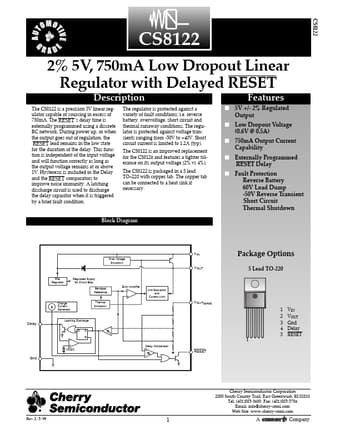

CS8122 Datasheet (175.20 KB)

CS8122 Datasheet Preview — Preview of CS8122 PDF

Datasheet Details

Part number:

CS8122

Manufacturer:

Cherry Semiconductor Corporation

File Size:

175.20 KB

Description:

2% 5v 750ma low dropout linear regulator.
