LVF252A12-100x-N, LVFxxxxxx, Sealed Power Inductors

www.DataSheet.co.kr Sealed Power Inductors - LVF Series LVF Series LVF series, an automatic assembly power inductor, is shielded with magnetic resin.

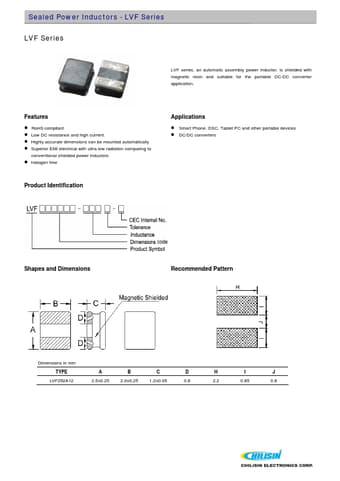

datasheet Preview Page 1 from Datasheet4u.com

LVFxxxxxx_ChilisinElectronics.pdf

LVF252A12-100x-N Datasheet Preview — This datasheet PDF includes multiple part numbers: LVF252A12-100x-N, LVFxxxxxx. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LVF252A12-100x-N, LVFxxxxxx

Manufacturer:

Chilisin Electronics

File Size:

303.30 KB

Description:

Sealed Power Inductors

Note:

This datasheet PDF includes multiple part numbers: LVF252A12-100x-N, LVFxxxxxx.
Please refer to the document for exact specifications by model.

Features

* RoHS compliant
* Low DC resistance and high current.
* Highly accurate dimensions can be mounted automatically
* Superior EMI electrical with ultra low radiation comparing to conventional shielded power inductors

Applications

* Smart Phone, DSC, Tablet PC and other portable devices DC/DC converters Product Identification Shapes and Dimensions Recommended Pattern Dimensions in mm TYPE LVF252A12 A 2.5±0.25 B 2.0±0.25 C 1.2±0.05 D 0.8 H 2.2 I 0.85 J 0.8 Datasheet pdf - http://www. DataSheet4U. net/ www. DataShe
